Canopy Release
DSF 001

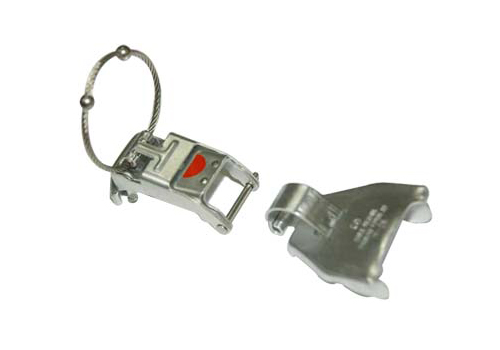

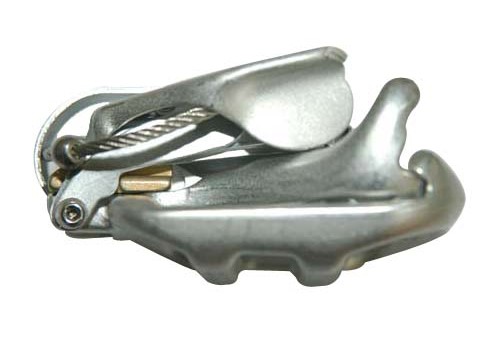

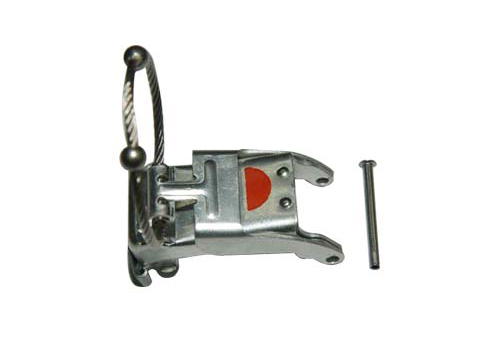

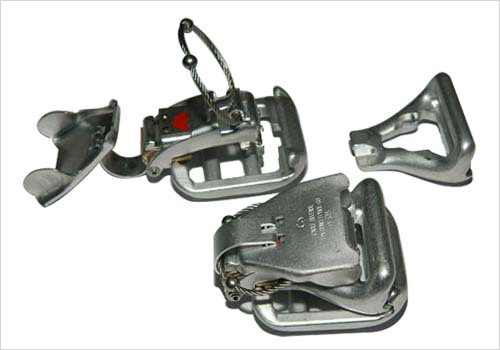

- FEMALE FITTING, PARACHUTE CANOPY RELEASE
- DSF 001-1 100681-2
- HOT FORGED ALLOY STEEL

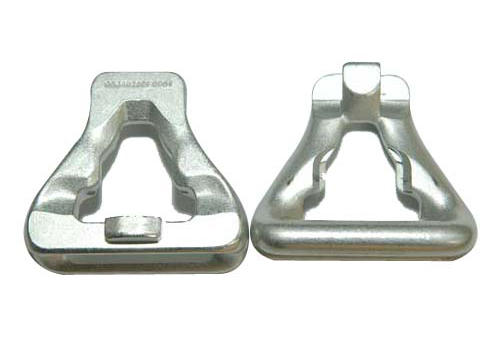

- DSF 001-2 60J4328
- 100% PROOF LOAD TESTED : 5000 LBS (MALE & FEMALE)
- 100681-2 : Approximate weight 8.0 ounces
- 100% MALE & FEMALE FITTING TEST : 5000 LBS
- 60J4328 : Approximate weight 4.0 ounces
- Meets or exceeds PIA-H-7195
Image view

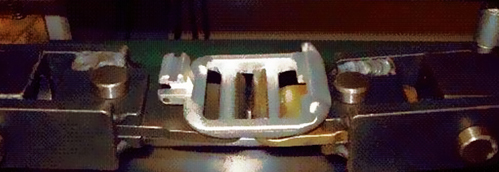

- MALE 60J4328 PROOF LOAD TEST
- FEMALE 100681-2 PROOF LOAD TEST

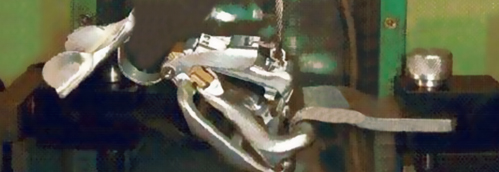

- MALE FITTING RELEASE TEST (LOADING 500LBS) RELEASE AT 12~19 LBS
- FEMALE 100681-2 PROOF LOAD TEST
- COVER GUARD RELEASE TEST RELEASE AT 6~12 LBS
- MALE & FEMALE FITTING TEST
- COVER GUARD SPRING DURABILITY TEST

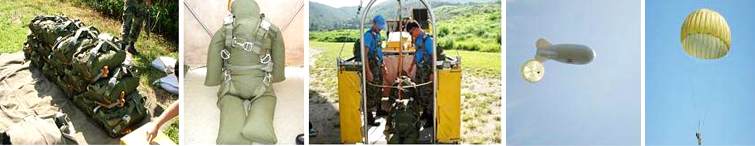

DUMMY TEST AT 150m
